Monthly Archives: July 2011

Replacement sliding sash window and box frame.

Surrey Joinery Specialists were tasked with replacing an old single glazed drafty sliding sash window with a new double glazed one with built in draft excluders.

Window opening









Once the old rotten window has been removed the opening is made ready for the new frame to be installed.

Robert inserting the new sash weights and cords.

Once the new frame is in and fixed, the sash cords and weights are attached ready to be fixed to the new sliding windows.

Finished window








Once the sliding windows are attached to the cords the draft proof beads and architrave  are fixed, and it is all lightly sanded and top coated. Then the brass sash pulls are fitted along with a fitch fastener.

Stormproof softwood window and frame by Surrey Joinery Specialists

Surrey joinery specialists were asked to measure make and install a new storm proof window to a property to enhance a living space. With the two side windows fixed and the centre opening, this allowed a vast amount of light into the room, as well as ventilation. Fitted with 20mm double glazed sealed units and a draft strip around the opener, the window also adheres to the current building regulations.

Recent projects by Surrey Joinery Specialists

Major repair to rotten conservatory

Surrey joinery specialists were tasked with replacing a large section of rotten conservatory to a large period property.

Rotten conservatory before work commence by Surrey Joinery Specialists

The whole of the end section had to be removed as it was all rotten apart from the door. All glass was removed carefully so that it could be reinstated upon completion of repair work.

During Surrey Joinery repair of rotten conservatory

When all the rotten timber had been removed, and new treated and primed sections had been installed the glass was reinstated, and the door rehung, here was the end result.

After Surrey Joinery Specialists have completed repair work to conservatory

Bathroom supplied and fitted by Surrey Joinery Specialists

Surrey Joinery Specialists managed the refurbishment of this bathroom, supplied and fitted the furniture, bespoke storage and installed the framework and bath panel. All of the joinery was supplied with two coats of yacht varnish due to the high moisture environment of a bath/shower room.

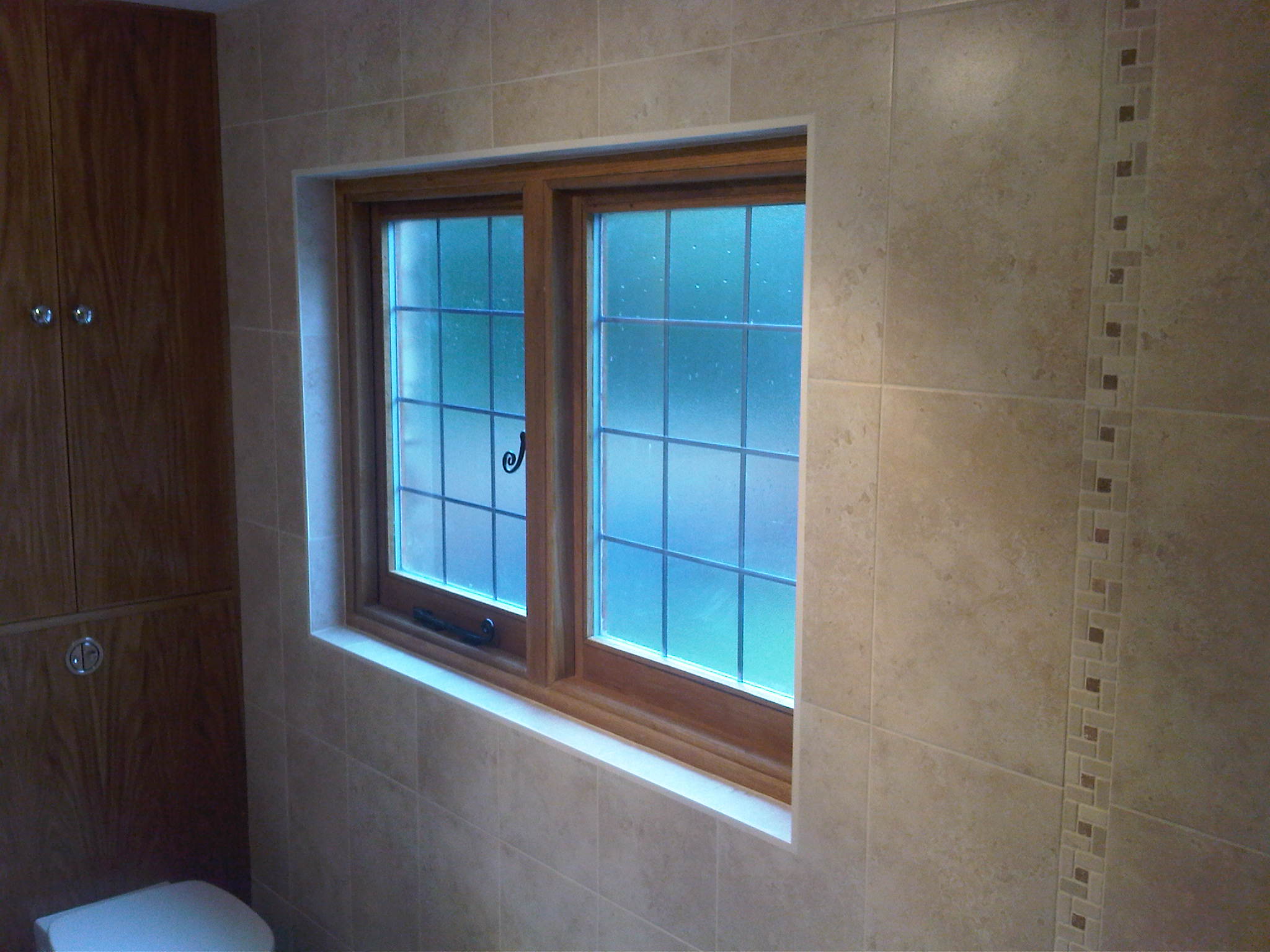

Double glazed leaded oak bathroom window

Recent projects by Surrey Joinery Specialists

Bespoke Softwood radius top side gate

Surrey joinery specialists were tasked with producing and installing a made to measure framed ledged & braced side gate with a curved top. Made from european redwood and finished with 1 coat of 5 star gold wood preserver and 3 coats of sadolins weather shield. This has enhanced the security of the property as it restricts access to the rear of the house.

Recent projects by Surrey Joinery Specialists

Solid Oak flooring with oak window seat.

Surrey Joinery Specialists were asked to remove the old painted window seat and lay a new 18mm solid pre-finished lacquered oak floor. Then refit a new oak window seat with storage.

Recent projects by Surrey Joinery Specialists

Bespoke double glazed solid oak window with leaded glass

Surrey joinery specialists were tasked with replacing the old drafty single glazed metal windows to this period property with new heat efficient double glazed ones. This was achieved by making the new windows from American white oak and fitting them with 20mm Argon filled low-E double glazed sealed units, giving the new windows a B-C rating on the energy efficiency rating. Draft seal strip has been installed in the manufacture process to the frame and they were supplied and installed with 3 coats of saddolin’s clear weathershield to protect from rain and UV.

Recent projects by Surrey Joinery Specialists

Bespoke full height fitted wardrobes with sliding doors.

Surrey Joinery Specialists were asked to make measure and install a run of full height wardrobes with sliding doors, after the removal of the existing storage system.

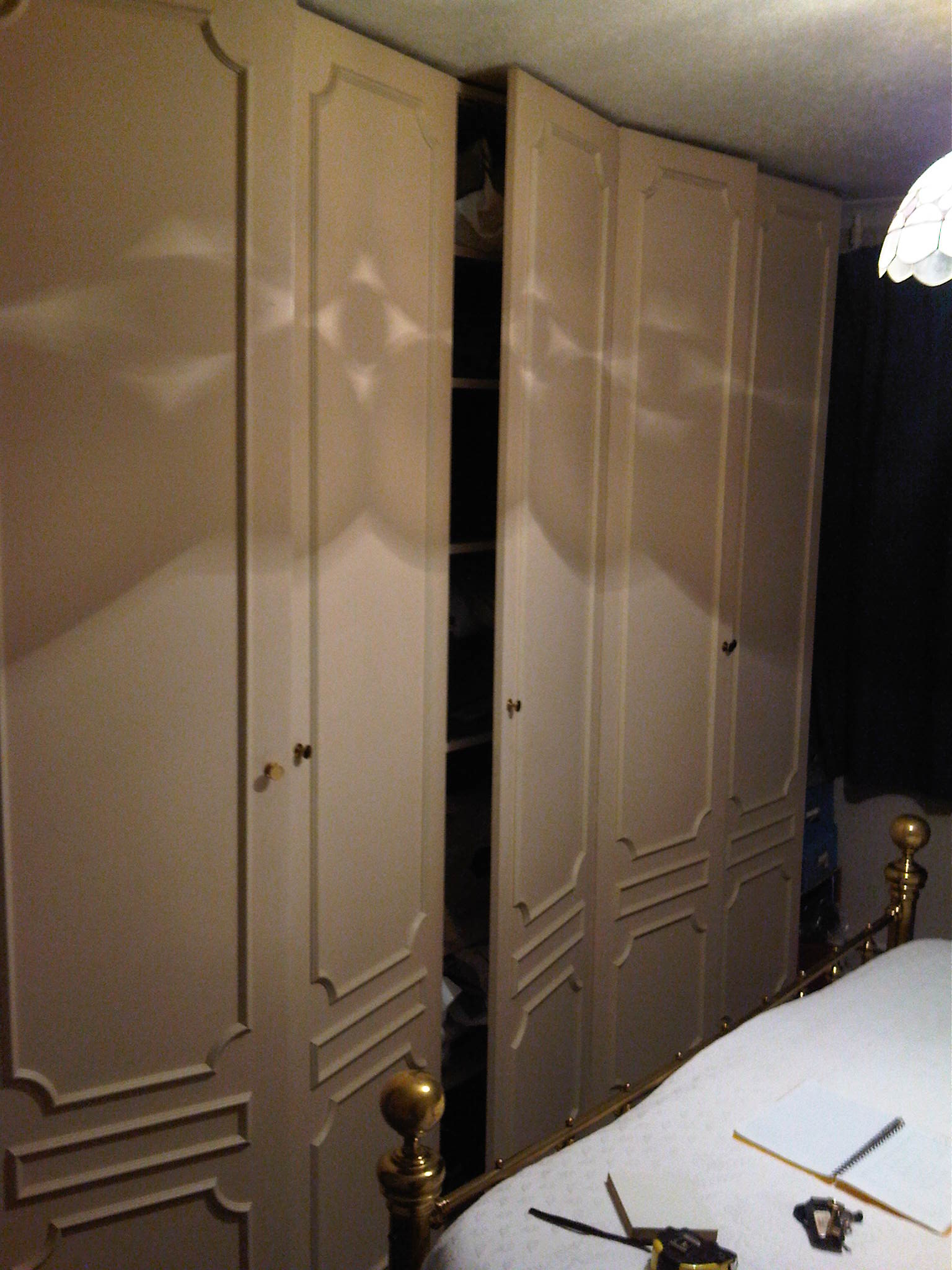

Exsisting wardrobe before Surrey joinery Specialists


The internal space was totally designed around the clients particular needs ensuring maximum storage throug

hout. The doors and decor panels were constructed of 18mm MDF and painted whilst the carcases and shelving were constructed of pre-finished white MDF.

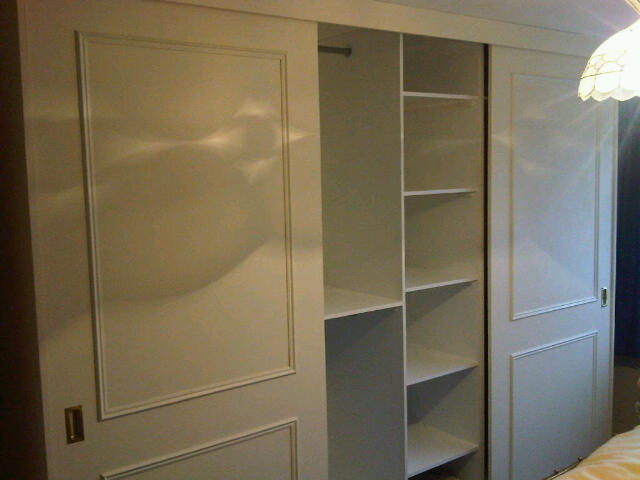

After Surrey Joinery Specialists have installed new wardrobes
