Windows

Sapele Hardwood Frame Solid American white oak casements

Solid Painted Sapele Hardwood Frames with American white oak fixed double glazed casement windows.

Solid Painted Sapele Hardwood Frames with American white oak fixed double glazed casement windows.

Replacement sliding sash window and box frame.

Surrey Joinery Specialists were tasked with replacing an old single glazed drafty sliding sash window with a new double glazed one with built in draft excluders.

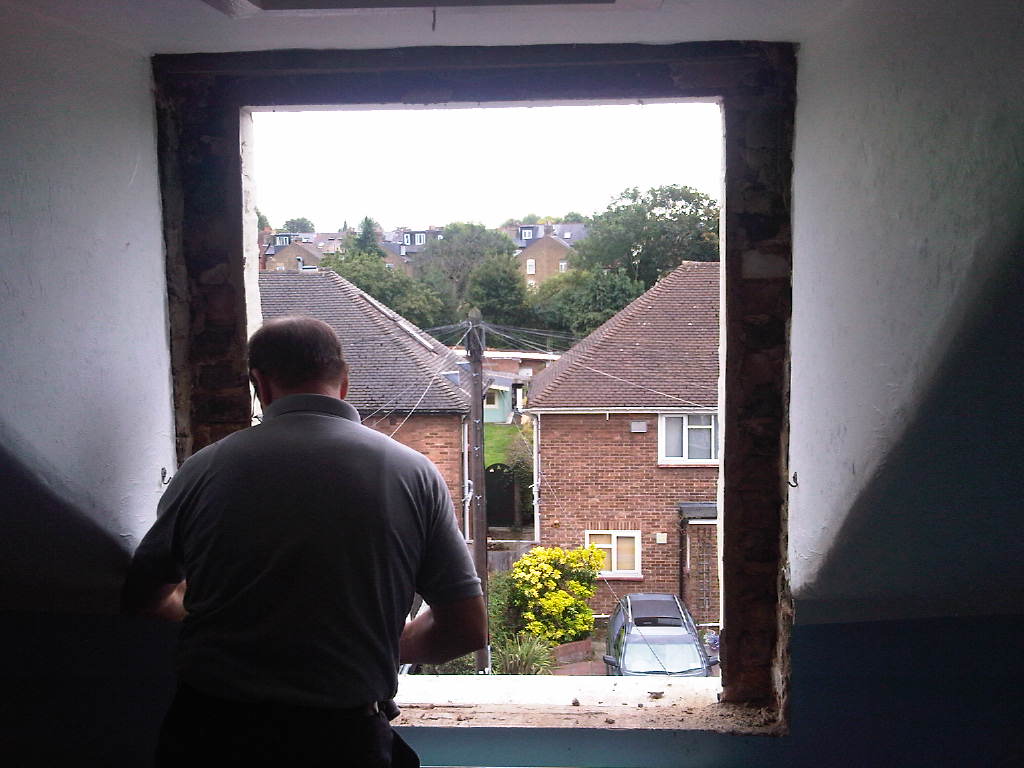

Window opening

















Once the old rotten window has been removed the opening is made ready for the new frame to be installed.

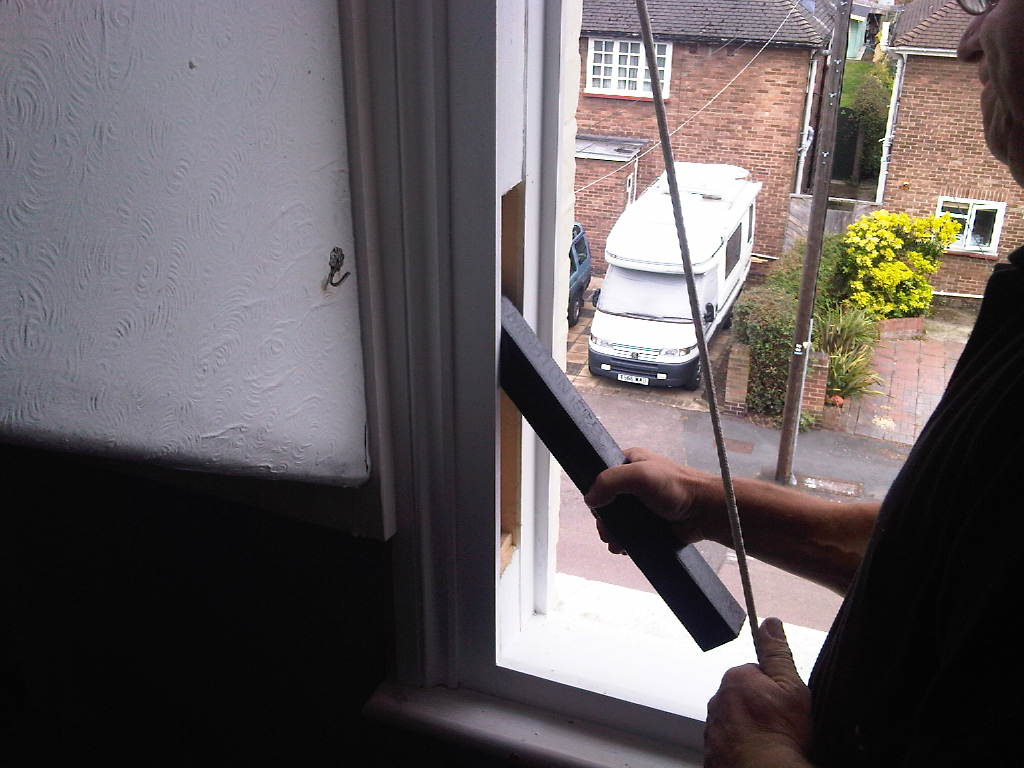

Robert inserting the new sash weights and cords.

Once the new frame is in and fixed, the sash cords and weights are attached ready to be fixed to the new sliding windows.

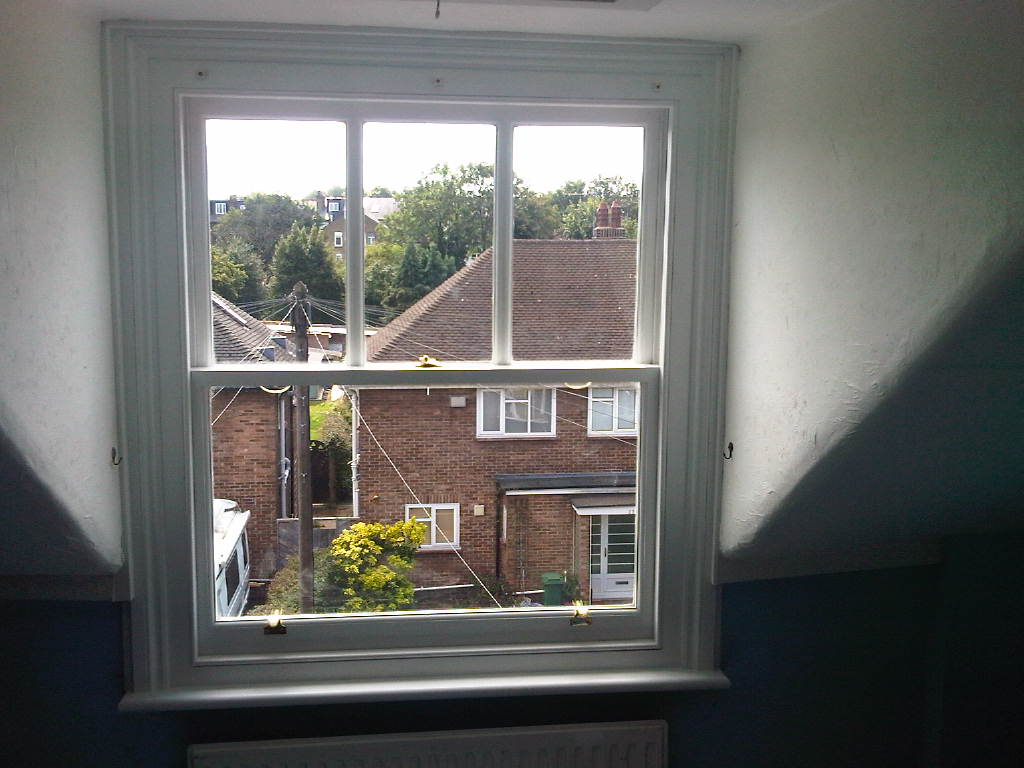

Finished window















Once the sliding windows are attached to the cords the draft proof beads and architrave  are fixed, and it is all lightly sanded and top coated. Then the brass sash pulls are fitted along with a fitch fastener.

Stormproof softwood window and frame by Surrey Joinery Specialists

Surrey joinery specialists were asked to measure make and install a new storm proof window to a property to enhance a living space. With the two side windows fixed and the centre opening, this allowed a vast amount of light into the room, as well as ventilation. Fitted with 20mm double glazed sealed units and a draft strip around the opener, the window also adheres to the current building regulations.

Recent projects by Surrey Joinery Specialists

Major repair to rotten conservatory

Surrey joinery specialists were tasked with replacing a large section of rotten conservatory to a large period property.

Rotten conservatory before work commence by Surrey Joinery Specialists

The whole of the end section had to be removed as it was all rotten apart from the door. All glass was removed carefully so that it could be reinstated upon completion of repair work.

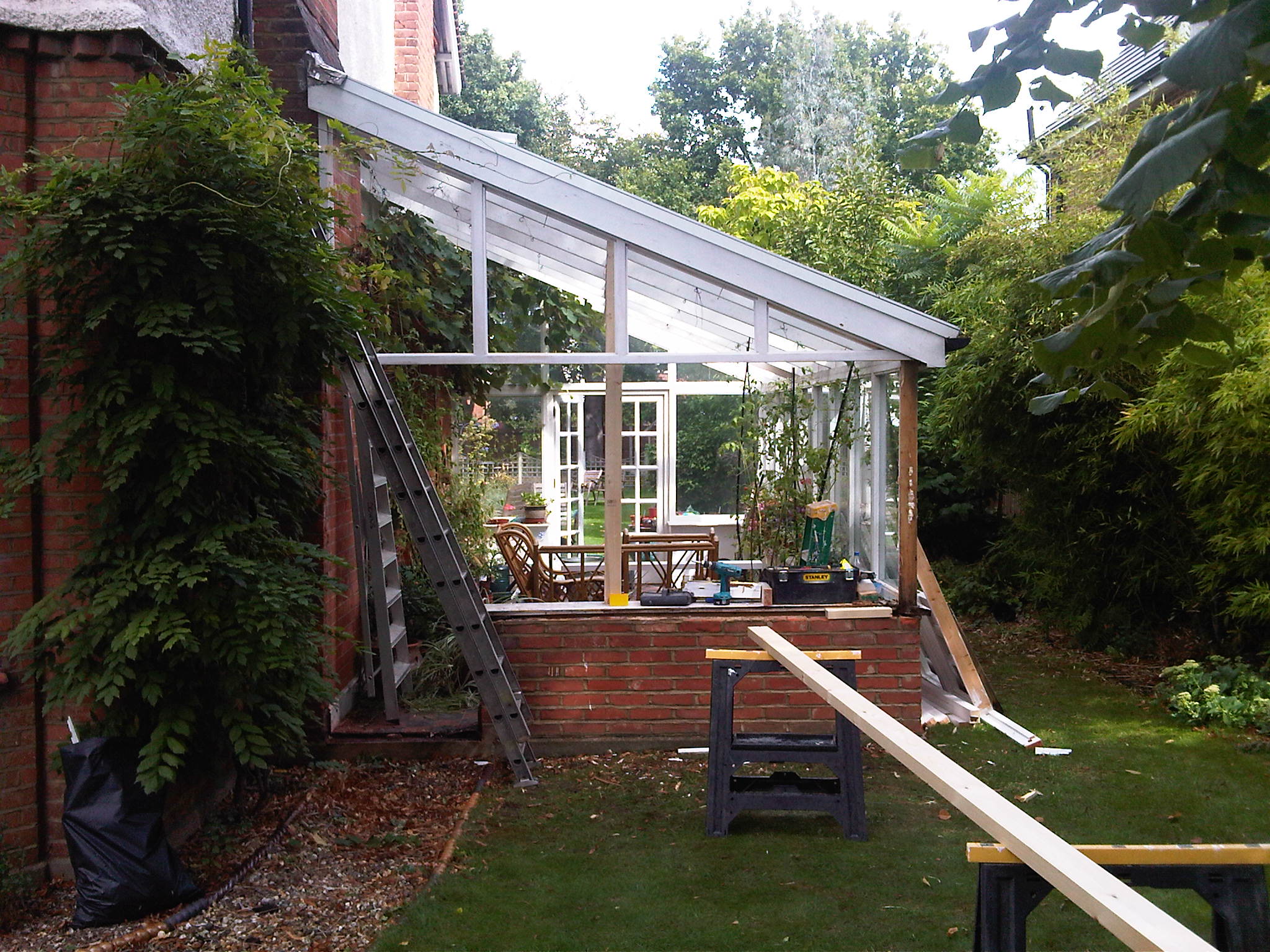

During Surrey Joinery repair of rotten conservatory

When all the rotten timber had been removed, and new treated and primed sections had been installed the glass was reinstated, and the door rehung, here was the end result.

After Surrey Joinery Specialists have completed repair work to conservatory

Bespoke double glazed solid oak window with leaded glass

Surrey joinery specialists were tasked with replacing the old drafty single glazed metal windows to this period property with new heat efficient double glazed ones. This was achieved by making the new windows from American white oak and fitting them with 20mm Argon filled low-E double glazed sealed units, giving the new windows a B-C rating on the energy efficiency rating. Draft seal strip has been installed in the manufacture process to the frame and they were supplied and installed with 3 coats of saddolin’s clear weathershield to protect from rain and UV.
